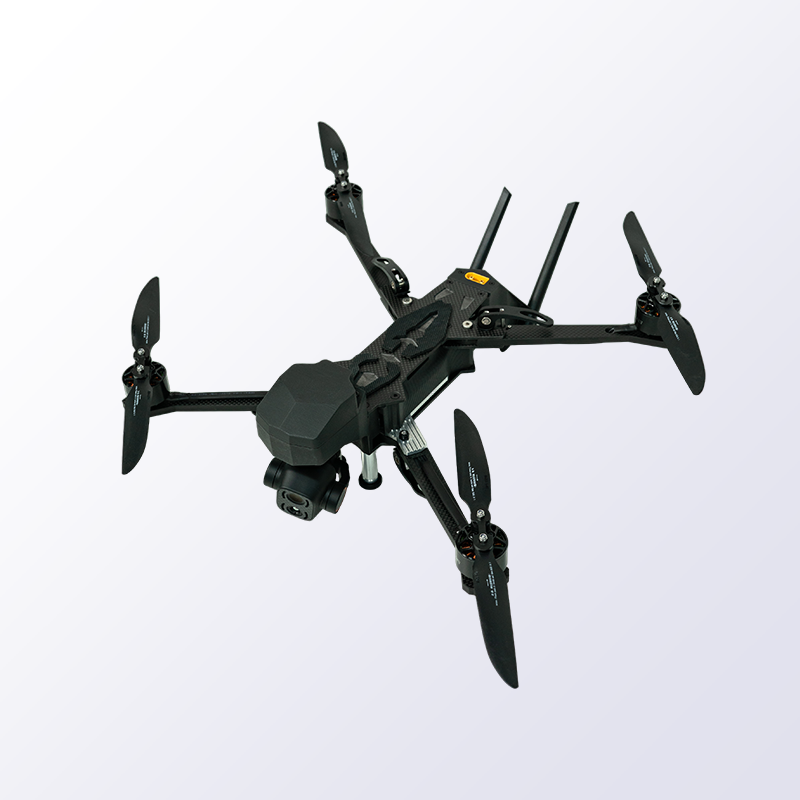

- Carbon-fiber foldable fuselage
- Max 15 km digital video transmission
- Max 30 minutes battery life
- Support a max payload of 3 kg
- Advanced route planning with one-click-return

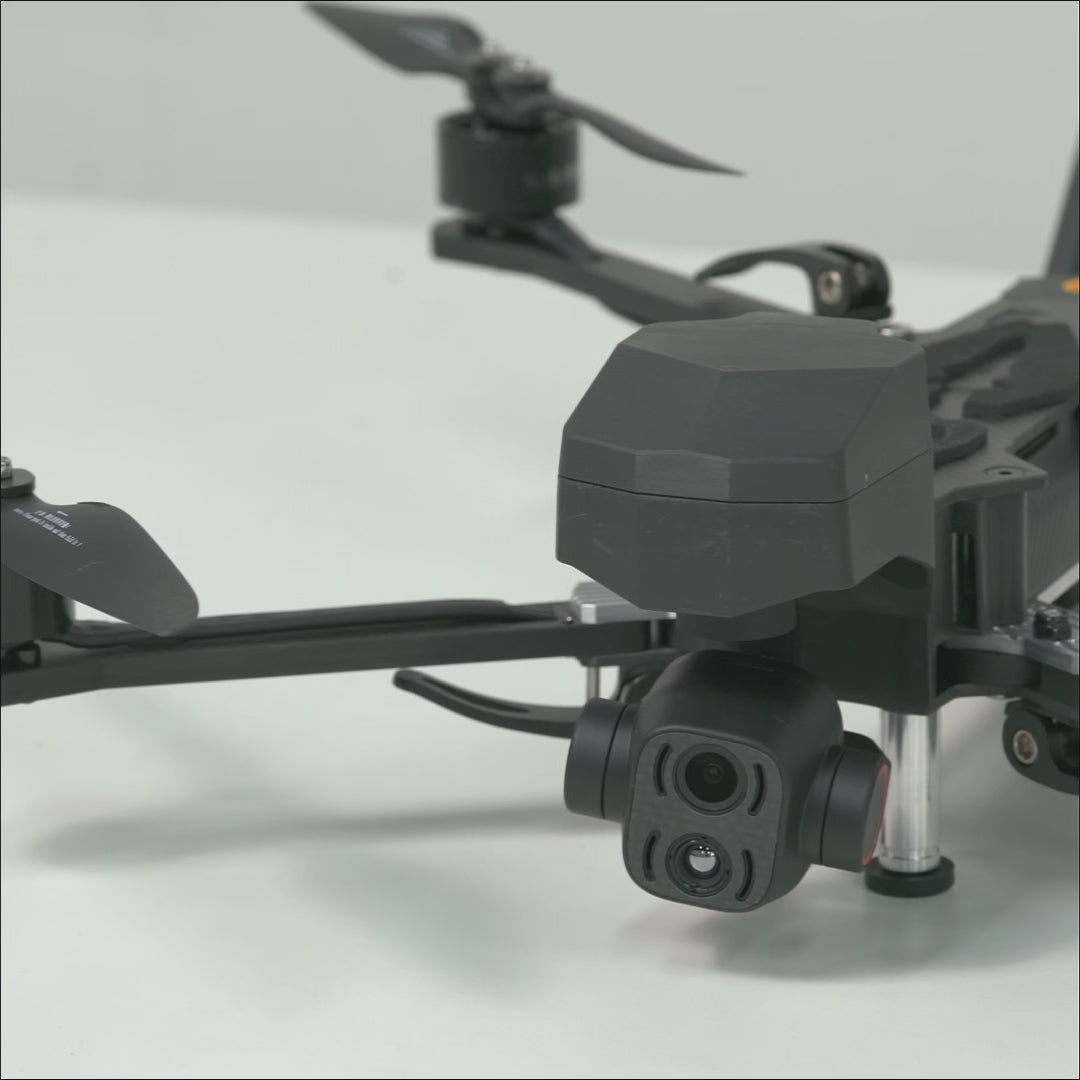

- Dual-sensor 3-axis gimbal (visible + thermal imaging)
- AI dynamic tracking
Specifications
| Full Dimension | W374 x L346 x H116 mm |
| Folded Dimension | W154 x L342 x H116 mm |
| Wheelbase | 444 mm |
| Weight (excl. battery) | 1450 g |
| Battery | 22.2 V / 6S / 8000 mAh |
| Weight (incl. battery) | 2550 g |
| Payload Capacity | 3 kg |
| Propeller | 2-blade 10-inch foldable propeller |
| Brushless Motor | T3 |
| Positioning System | M10 chip UBLOX |
| Gimbal | C12 |
| Camera Lens | C12 dual-sensor HD lens |
| FPV Link | Integrated FC & video transmission system |
| Operating Temp | -10 °C - 40 °C |
| Max Flight Speed (GPS Mode) | 100 km/h |
| Max Flight Speed (Altitude Hold Mode) | 120 km/h |
| Max Flight Distance | 10 - 15 km |
| Max Flight Time (Unloaded) | No-load hovering |
| Max Flight Time (With Payload) | Payload 3 kg ≈ 10 min flight time |
| Effective Pixels | 5 MP |
| Focal Length | f/ 3.5 - 4.75 mm |
| Aperture | F/ 2.0 |
| Max Video Link Resolution | 1280 x 720 |
| Max Image & Video Resolution | 2560 x 1440 |
| Zoom | 30 X |
| FOV (HFOV / VFOV / DFOV) | 100° / 52° / 122° |
| Supported Memory Card | Micro SD with max 256 G |
| Max Thermal Resolution | 384 x 288 |
| Focal Length | f/ 7 mm |
| Aperture | F/ 1.0 |
| Frame Rate | < 25 Hz |
| FOV | 24.8° x 18.7° |
| Thermal Time Constant | < 10 ms |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 - 14 μm long-wave infrared |
